Trigeminal Neuralgia & Related Symptoms

Anatomy of the Trigeminal Nerve

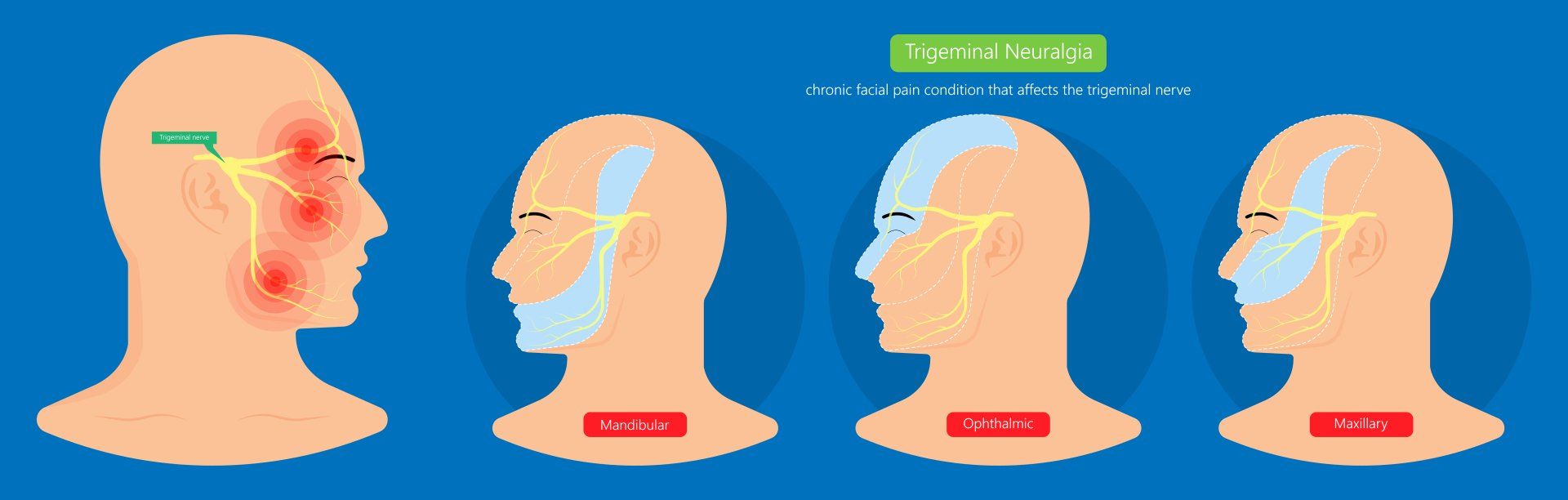

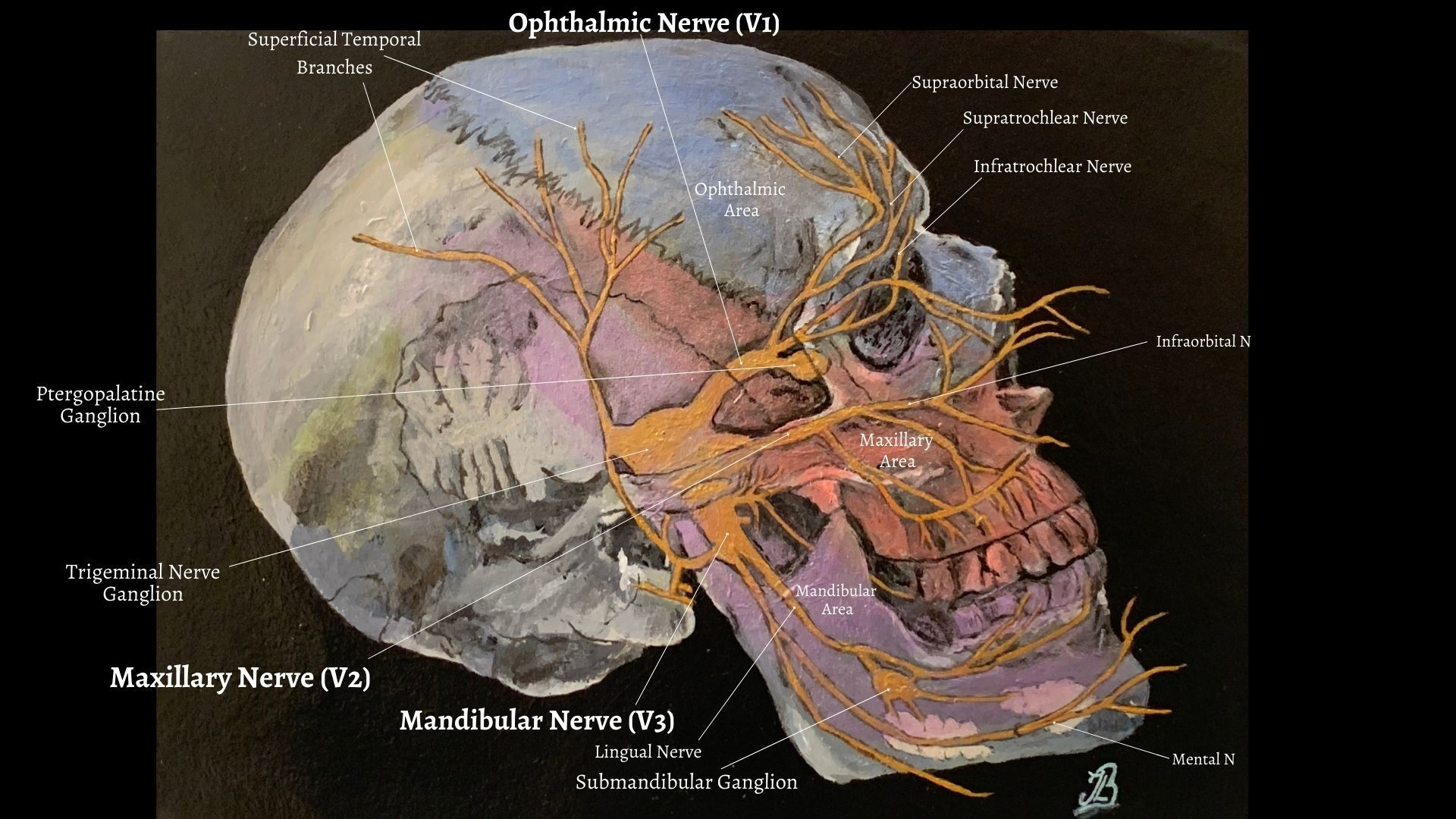

After the trigeminal nerve leaves the brain, it divides into three smaller branches that extend to different territories and control sensations throughout the face (Figure 2). The branches join at the trigeminal ganglia which are located within the Meckels cave of the cranial cavity.

· Ophthalmic Nerve (V1): The first branch controls sensation in a person's eye, upper eyelid and forehead.

· Maxillary Nerve (V2): The second branch controls sensation in the lower eyelid, cheek, nostril, upper lip and upper gum.

· Mandibular Nerve (V3): The third branch controls sensations in the jaw, lower lip, lower gum and some of the muscles used for chewing.

Each branch provides sensation to different areas of the face and depending on which branch and which part of the nerve is irritated, trigeminal neuralgia pain can be felt anywhere in the face. Most commonly, symptoms are felt in the lower part of the face and the intensity of the pain is exceptional with some people reporting it to be more severe than experiencing a heart attack, passing a kidney stone or even giving birth.

Branches V1, V2, and V3 of the trigeminal nerve exit the cranium through the superior orbital fissure, foramen rotundum, and foramen ovale, respectively (2).

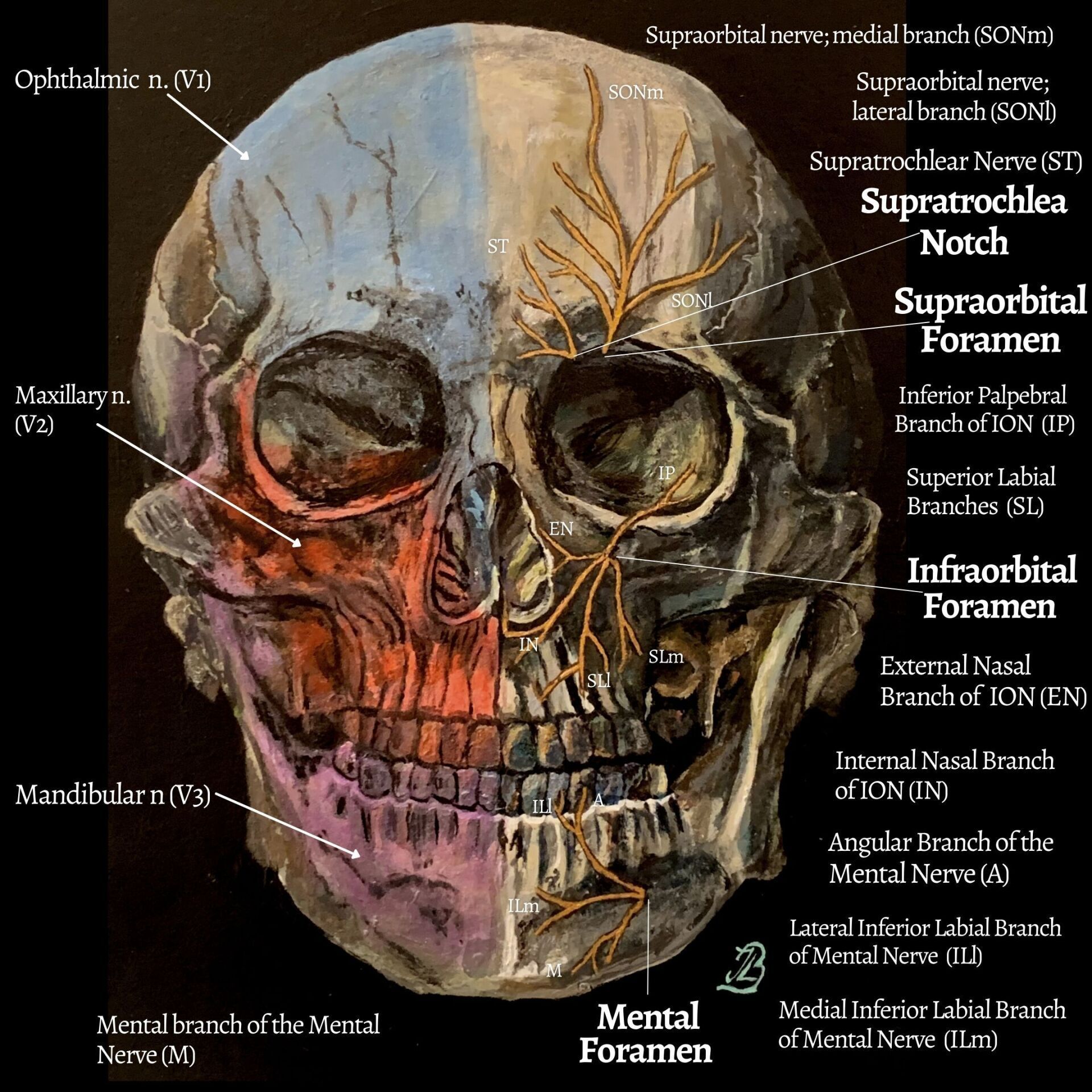

Figure 3 shows the small neural branches of the trigeminal nerve (V); the Infraorbital nerve (ION), Supraorbital nerve (SON), the supratrochlear nerve (ST) and the mental nerve (M).

The Supraorbital Nerve (SON): Is one of two branches of the frontal nerve which itself, is a branch of the ophthalmic nerve (V1). The SON travels anteriorly above the levator palpebrae superioris muscle and exits the orbit via the supraorbital foramen within the superior margin of the orbit (19). The SON then ascends onto the forehead and divides into the medial (SONm) and lateral (SONl) branches of the SON (Figure 3).

The Supratrochlear Nerve (ST): The other branch of the frontal nerve is the supratrochlear nerve which passes above the superior oblique muscle and exits the supratrochlea notch to provide sensory innervation to the forehead and upper eyelid (19) (Figure 3).

The Infraorbital Nerve (ION): A branch of the maxillary nerve (CN V2) that travels through the orbit, enters the infraorbital canal and exits out onto the face via the infraorbital foramen providing skin sensation to the middle of the face (19) (Figure 3).

The ION divides into four main branches; the inferior palpebral (IP), the external nasal (EN), the internal nasal (IN), and the superior labial branches (SLm and SLl) .

The Mental Nerve (M): branches from mandibular nerve (CN V3 ), it emerges from the mental foramen in the mandible and divides into three branches with one branch descending to the skin of the chin via the Mental branch nerve (M). The other two branches ascend to the skin of the lower lip via the lateral (ILl) and medial inferior labial branches (ILm)(19) (Figure 3).

Causes

The International Headache Society (IHS) describes two classifications of TN: classical or primary and symptomatic or secondary (15).

Classical or Primary TN
Classical or primary TN is due to a vascular compression of the trigeminal root by tortuous or aberrant blood vessels (13).

Primary trigeminal neuralgia has been linked to the compression of the trigeminal nerve, typically in the base of the head where the brain meets the spinal cord. This is usually due to contact between a healthy artery or vein and the trigeminal nerve at the base of the brain. This places pressure on the nerve as it enters the brain and causes the nerve to misfire (15).

Accoriding to Gerwin (2020), the vessel most commonly compressing the trigeminal nerve root is the superior cerebellar artery (SCA), as identified by high-resolution magnetic resonance imaging (MRI). The anterior inferior cerebellar artery (AICA), the basilar artery, and an ectatic vertebro-basilar artery have also been implicated in some patients. The trigeminal nerve can also be compressed by veins, particularly the superior petrosal and transverse pontine veins (6).

Symptomatic or Secondary TN

Secondary Trigeminal neuralgia is caused by pressure on the nerve from a tumor, Multiple sclerosis, a cyst, facial injury or another medical condition that damages the myelin sheaths (15).

Symptomatic TN can be related to cerebello-pontine angle tumours which compress the trigeminal nerve root. Multiple sclerosis (MS) is typically associated with TN (2-4% of patients with TN) (13).

Treatment

Non-Surgical Treatments

There are several effective ways to alleviate the pain, including a variety of medications which are generally started at low doses and increased gradually based on patient’s response to the drug (13). Sodium channel blockers of either Carbamazepine or Oxcarbazepine are effective in most TN cases for treating symptoms. However, they can cause possible side effects of dizziness, double vision, drowsiness and nausea. Oxcarbazepine may be preferred for the minor risk of drug interactions and tolerability (13).

Surgery

If medications have proven ineffective in treating TN several surgical procedures may help control the pain, however, microvascular decompression of the trigeminal nerve root is the most effective and long-lasting treatment. Surgical treatment is divided into two categories: 1) open cranial surgery or 2) lesioning procedures. In general, open surgery is performed for patients found to have pressure on the trigeminal nerve from a nearby blood vessel, which can be diagnosed with imaging of the brain, such as a special MRI. This surgery is thought to take away the underlying problem causing the TN. In contrast, lesioning procedures include interventions that injure the trigeminal nerve on purpose, in order to prevent the nerve from delivering pain to the face. The effects of lesioning may be shorter lasting and in some cases may result in numbness to the face.

How Might Physical Therapy Help?

Overall, the evidence of manual therapy for the relief of TN is low, however, there are case studies who report to have had their chronic symptoms significantly improved or resolved despite receiving surgery or primary care interventions first.

Acupuncture - Case Study

A previous case study by Sert et al., (2009) reported that acupuncture treatment helped relieve their symptoms after having received 5 treatment sessions. A 66 year old lady who suffered from chronic TN pain on the left side of her face for over 25 years found that acupuncture helped relieve her symptoms completely despite trying primary care intervention methods first. The primary care methods included medication (carbamazepine, gabapentin and valproic acid), nerve block and radiofrequency rhizotomy of the infraorbital branch of the trigeminal nerve (15).

However, research has concluded that although acupuncture may have some positive effects on Trigeminal Neuralgia, the level of evidence is low or very low and a firm conclusion can not yet be drawn on the efficacy of acupuncture for Trigeminal Neuralgia (15).

Deep Tissue Massage & Acupuncture - Case Study

Another case who suffered from TN was studied by Omar and Bakar (2020) who found that acupuncture with massage therapy had significantly improved their symptoms after four treatment sessions. The massage applied involved using deep pressure along the distribution of the trigeminal nerve around the regions of the ear, maxilla, mandibular, and forehead. The massage aimed to stimulate the nerve by repeatedly stroking along the distribution of the V2 trigeminal nerve. Dry needling was executed at five location points, namely the temporalis muscle, the junction of the temporo-mandibular joint and along the lower end of the maxillary bone including masseter muscle (12).

Spinal manipulation and Chiropractic Care - Case Study

Another case study who received chiropractic care and suffered from chronic TN pain was written by Rodine and Aker (2010). In this particular case, there was evidence to suggest that there were three sources of pathology contributing towards the individual's pain including; neck pain caused by degenerative disc disease (DDD), temparomandibular joint (TMJ) syndrome and trigeminal neuralgia (15). The chiropractic practitioner observed the relief of symptoms by performing ultrasound electrotherapy, manual therapy of manipulation and mobilisation, soft tissue therapy techniques and home exercises.

Osteopathic Treatment & Cranial Osteopathy

Some individuals might find relief from osteopathic treatment application to the cranium, in particular the cranial base with myofascial trigger points to the masseter and temporalis muscles (2).

References

1. Birnbaum G and Iverson JDalfampridine may activate latent trigeminal neuralgia in patients with multiple sclerosis.Neurology 2014;83(18): 1610-161
2. Campbell, S., M., Winkelmann, R. R., Walkowski, S. (2014) Osteopathic Manipulative Treatment Novel Application to Dermatological Disease, Clinical Aesthetic, 5; 10: 24-32.
3. Crevier-Sorbo, G., Brock, A., Rolston, J. D. (2019) Trigeminal neuralgia plus hemifacial spasm caused by a dilated artery: a case of painful tic convulsif syndrome, Lancet, 394, e36.
4. Cruccu G, Gronseth G, Alksne J, Argoff C, Brainin M, Burchiel K, et al. (2008) AAN‐EFNS guidelines on trigeminal neuralgia management. European journal of neurology; 15 (10): 1013-28.
5. Dalessio D, J. (1982) Trigeminal neuralgia. A practical approach to treatment. Drugs; 24 (3): 248-55. Physiotherapy/Physical Therapy. Available from: Physiotherapy / Physical Therapy.
6. Gerwin, R. (2020) Chronic Facial Pain: Trigeminal Neuralgia, Persistent Idiopathic Facial Pain, and Myofascial Pain Syndrome—An Evidence-Based Narrative Review and Etiological Hypothesis, MDPI, 17, 7012.
7. Headache Classification Committee of the International Headache Society (IHS) (2013) The International Classification of Headache Disorders. Cephalalgia; 33:629–808. 3rd edn.
8. Kataria, S., Ahmed, Z., Ali, U., Ahmad, S., Awais, A. (2020) Trigeminal Neuralgia Induced Headache: A Case Report and Literature Review, Cureus, 12; 7: 1-4.
9. Khanal, D., Khatri, S. M., Anap, D. (2014) Is there Any Role of Physiotherapy in Fothergill's Disease. Journal of Yoga & Physical Therapy. 1; 4 (2): 1.
10. Kim, J.I., Kim, H.J., Lee, J.J., Jun, J.H., Choi, T-Y., Lee, M. S. (2018) Acupuncture for the treatment of trigeminal neuralgia A protocol for the systematic review of randomized controlled trials, Medicine, 97; 11: 1-3.
11. Longo, D. L., et al., (2017) eds. Trigeminal neuralgia, Bell's palsy, and other cranial nerve disorders. In: Harrison's Principles of Internal Medicine. 19th ed. New York, N.Y.: McGraw-Hill Education; 2015. https://accessmedicine.mhmedical.com. Accessed June 5.
12. Omar, W. A. W., Bakar, N. L. A. (2020) Improvement of trigeminal neuralgia after massage therapy and dry needling, Malaysian Journal of Medicine and Health Sciences;16 (102): 81-83.
13. Maarbjerg, S., Stefano, G. D., Bendsten, L., Cruccu, G. (2017) Trigeminal Neuralgia; Diagnosis and Treatment, Cephalalgia, International Headache Society, 37, 7; 648-657.
14. Reeta, Kumar U, Kumar V, Alam M, Islami D, Lal W et al (2016). A Survey to Observe the Commonly Used Treatment Protocol for Trigeminal Neuralgia by Physiotherapist. International Journal of Physiotherapy; 3 (5): 643-646.
15. Rodine, R. J., Aker, P. (2010) Trigeminal Neuralgia and Chiropractic Care: A Case Report, JCCA, 54;3: 177-186.
16. Sert, H., Usta, B., Musla, B., Gozdemir, M. (2009) Successful Treatment of a Resistance Trigeminal Neuralgia Patient By Acupuncture, Clinics, 64(12): 1225–1226.
17. Truini. A (2015), Trigeminal Neuralgia, Journal of Headache and Pain, 16; A42.
18. Trigeminal neuralgia. Available from: https://www.physio.co.uk/what-we-treat/chronic-pain-fatigue/trigeminal-neuralgia.php (Accessed on 2nd October, 2020).
19. Wikipedia (2022) [online] https://en.wikipedia.org/wiki/Mental_nerve#:~:text=The%20mental%20nerve%20is%20a%20branch%20of%20the%20posterior%20trunk,mental%20foramen%20in%20the%20mandible.&text=These%20branches%20communicate%20freely%20with%20the%20facial%20nerve. (last visited 07/02/2022).
